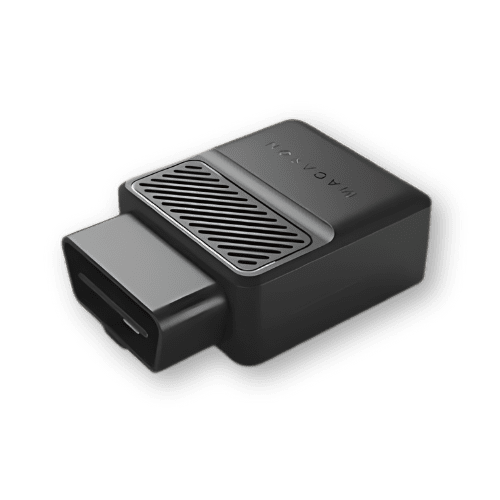

DIMO Macaron

Turn everyday driving into value with DIMO’s most cost‑effective device. Macaron uses the Helium IoT Network and Bluetooth to provide basic vehicle analytics and weekly rewards. It includes 3 years of connectivity (coverage is limited outside metro areas; check coverage) and works with vehicles 2008 and newer (Tesla excluded).

Key benefits

Basic analytics & weekly rewards when connected and driving
Helium IoT + Bluetooth connectivity with 3 years included
Vehicle compatibility: 2008+ (excluding Tesla); CAN (OBDII) support
Compact design with status LEDs for power, network, and Bluetooth

What’s in the box

DIMO Macaron device

Setup at a glance

Check Helium IoT coverage near you; coverage can be limited outside metro areas.
Mount the device in the cabin with Velcro/3M (away from airbags). If using an OBD2 extension, connect it to the vehicle’s OBD2 port.
Open the DIMO app to pair via Bluetooth and complete onboarding; initial syncing can take up to 48 hours.

Attribute	Value
Model	DIMO Macaron
Vehicle compatibility	2008 and newer (Tesla excluded)
Network	Helium IoT (LoRa) + Bluetooth
Connectivity (chips)	SX1262 LoRa transceiver; Bluetooth 5.0/BLE; CAN (OBDII)
Processor	Nordic nRF52840 (32‑bit ARM Cortex‑M4F, 64 MHz)
Memory	128 MB flash; 256 kB RAM
Sensors	3‑axis accelerometer + gyroscope
Status indicators	3× LED (Power, Connect, Bluetooth)
Power	Input 5–50 V; internal 3.3 V
Low‑power mode	2 µA (sleep); ~200 mA on power‑on
Ports	USB 2.0
Antennas	External U.FL (902–928 MHz US; 868 MHz EU); internal optional
Connectivity plan	3 years included (coverage limited outside metro areas)
Onboarding	DIMO mobile app (Bluetooth pairing; Helium network required)

What do I need for Macaron to work?

You need a compatible vehicle (model year 2008+; Tesla excluded), the DIMO mobile app, and Helium IoT coverage. Macaron includes 3 years of connectivity, but coverage can be limited outside metro areas.

How do rewards work with Macaron?

Macaron provides basic access to vehicle analytics and weekly DIMO rewards when your device stays connected and you drive. Reward parameters can change; always refer to DIMO’s official materials for current rules.

How do I install and onboard the device?

Mount the device in the cabin using Velcro/3M (away from airbags). If you use an OBD2 extension, connect it to the vehicle’s OBD2 port. Pair via Bluetooth in the DIMO app and complete onboarding; initial syncing can take up to 48 hours.

Does Macaron use cellular?

No. Macaron uses the Helium IoT Network (LoRa) and Bluetooth. Ensure you have Helium coverage in your area before purchasing or installing.

What’s included in the box?

The DIMO Macaron device. Accessories like OBD2 extensions or mounting tape are optional.

Is Tesla supported?

No. DIMO lists Tesla as excluded for the Macaron. Check DIMO’s app for Tesla connectivity options that do not require Macaron hardware.
