GEO‑MEASURE

Description

GEO‑MEASURE

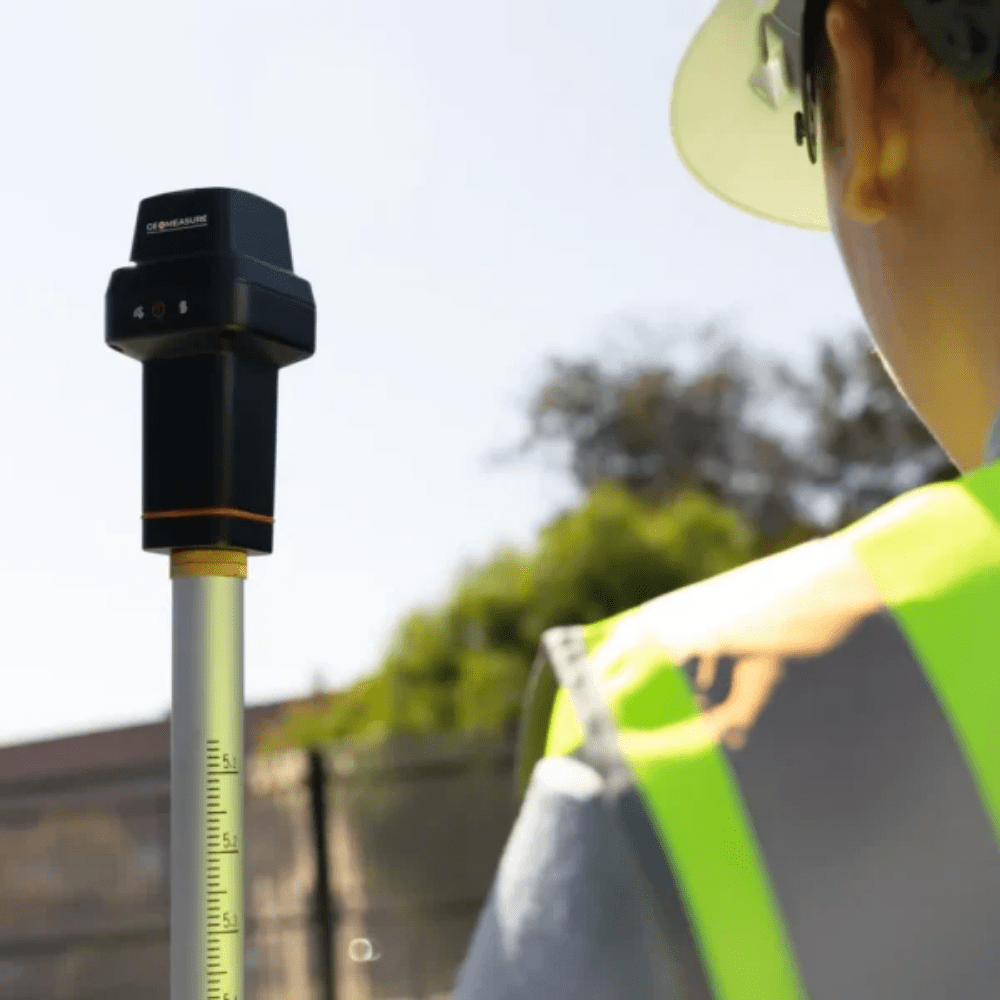

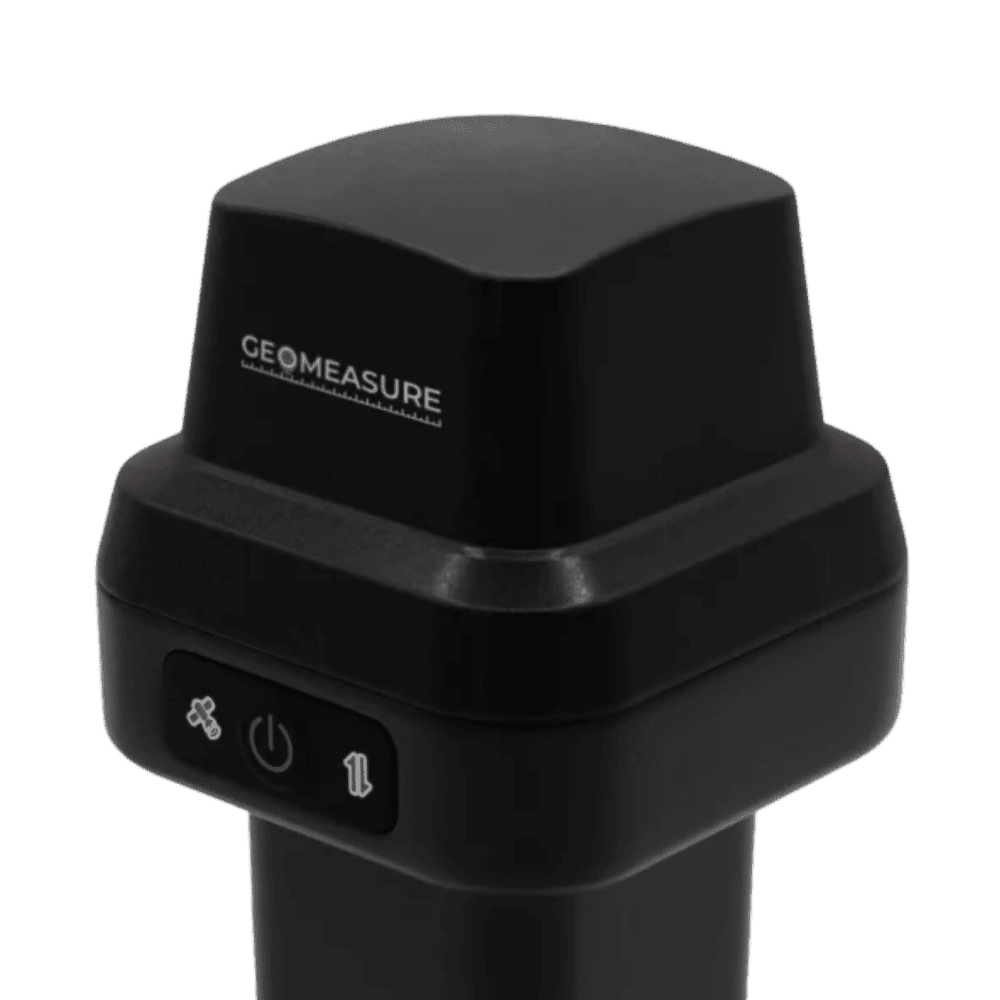

GEO‑MEASURE is a fully integrated, handheld RTK GNSS rover engineered to deliver centimeter‑level positioning in a single compact unit.
Its all‑in‑one helix antenna integrates GNSS, Wi‑Fi, and Bluetooth for stable connectivity—no external antennas or cables required.
Pair the device with the GEO‑MEASURE mobile app to receive RTK corrections through the GEODNET network.
A complimentary 1‑year GEODNET RTK subscription is included and is exclusive to the GEO‑MEASURE app.

Key benefits

Centimeter‑level RTK results (with GEODNET RTK corrections & open‑sky): H ≈ 8 mm + 1 ppm RMS, V ≈ 15 mm + 1 ppm RMS
All‑in‑one, field‑ready design: integrated helix antenna (GNSS + Wi‑Fi + Bluetooth), no external antennas/cables
Multi‑constellation GNSS: GPS, GLONASS, Galileo & BeiDou with up to 1,040 channels
All‑day power & ruggedness: 24 hrs active time per charge, USB‑C (PD) charging, IP67 protection

What’s in the box

GEO‑MEASURE RTK GNSS device
Built‑in rechargeable lithium‑ion battery
USB‑C charging cable
Complimentary GEODNET RTK subscription (1 year) (exclusive to the GEO‑MEASURE app)

Setup at a glance

Power on: press and hold the Power Button for ~3 seconds until the indicator light turns on; a beep confirms power‑on.
Pair in the app: install the GEO‑MEASURE app, enable Bluetooth and internet, then add/select the device and confirm Bluetooth pairing.
Measure with RTK: move to an open‑sky area, verify RTK Fix, start measuring in the Map workflow, then export results from the Project section.

Attribute	Value
Model	GEO‑MEASURE
Device type	Handheld RTK GNSS rover / receiver
GNSS constellations	GPS, GLONASS, Galileo, BeiDou
Signal tracking	GPS L1C/A, L2P(Y), L2C, L5 BeiDou B1I, B2I, B3I, B1C, B2a GLONASS G1, G2 Galileo E1, E5a, E5b QZSS L1C/A, L2C, L5 IRNSS L5
Channels	Up to 1040
Cold start	< 29 s
Warm start	< 28 s
Hot start	< 2 s
Convergence time	< 5 s
Initialization reliability	> 99.9%
RTK accuracy	H: 8 mm + 1 ppm RMS; V: 15 mm + 1 ppm RMS
Standalone accuracy	H: 1.5 m RMS; V: 2.5 m RMS
RTCM	v3.x (MSM included)
Output	NMEA‑0183 (10 Hz)
Supported positioning modes	DGPS, RTK, PPP
Battery	7.2 V @ 6800 mAh; built‑in lithium‑ion
Charging interface	USB‑C (PD)
Battery life	24 hrs (active time per charge)
Charging time	4 hrs (typ), 8 hrs (max)
Operating system	Embedded RTOS
Internal memory	2M PSRAM
Bluetooth	Version 4.2 (BR/EDR & BLE)
Wi‑Fi	802.11b/g/n, up to 150 Mbps
USB Type‑C	Charging, Data Transfer
Dimensions	71 mm × 71 mm × 140 mm
Weight	430 g
Operating temperature	-30°C to +65°C
Storage temperature	-40°C to +80°C
Ingress rating	IP67
Shock resistance	On survey pole: 2 m drop; Free fall: 1.2 m drop
Humidity	Up to 100%
Certification	CE, FCC

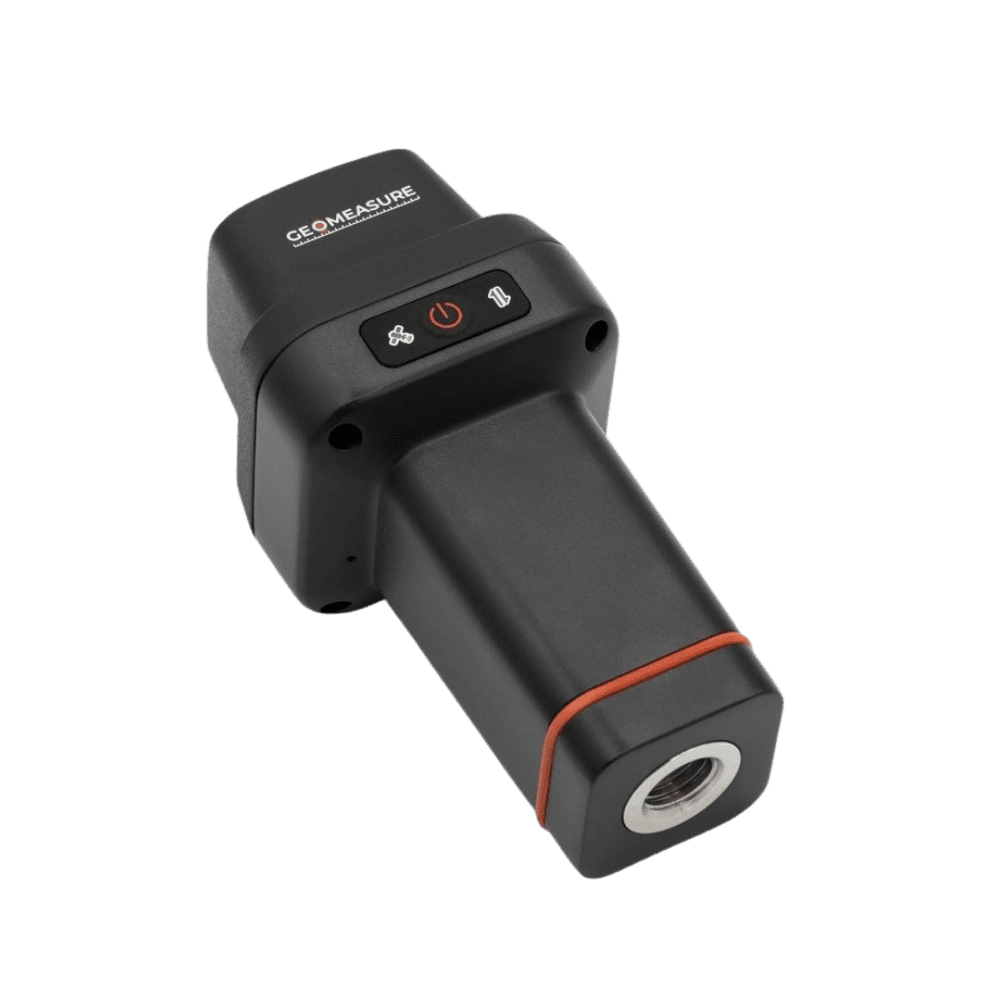

Mounting	5/8 × 11 inch threaded mount (survey pole compatible)
Included service	Complimentary GEODNET RTK subscription (1 year; exclusive to the GEO‑MEASURE app)
