Geodnet GEO-PULSE

Description

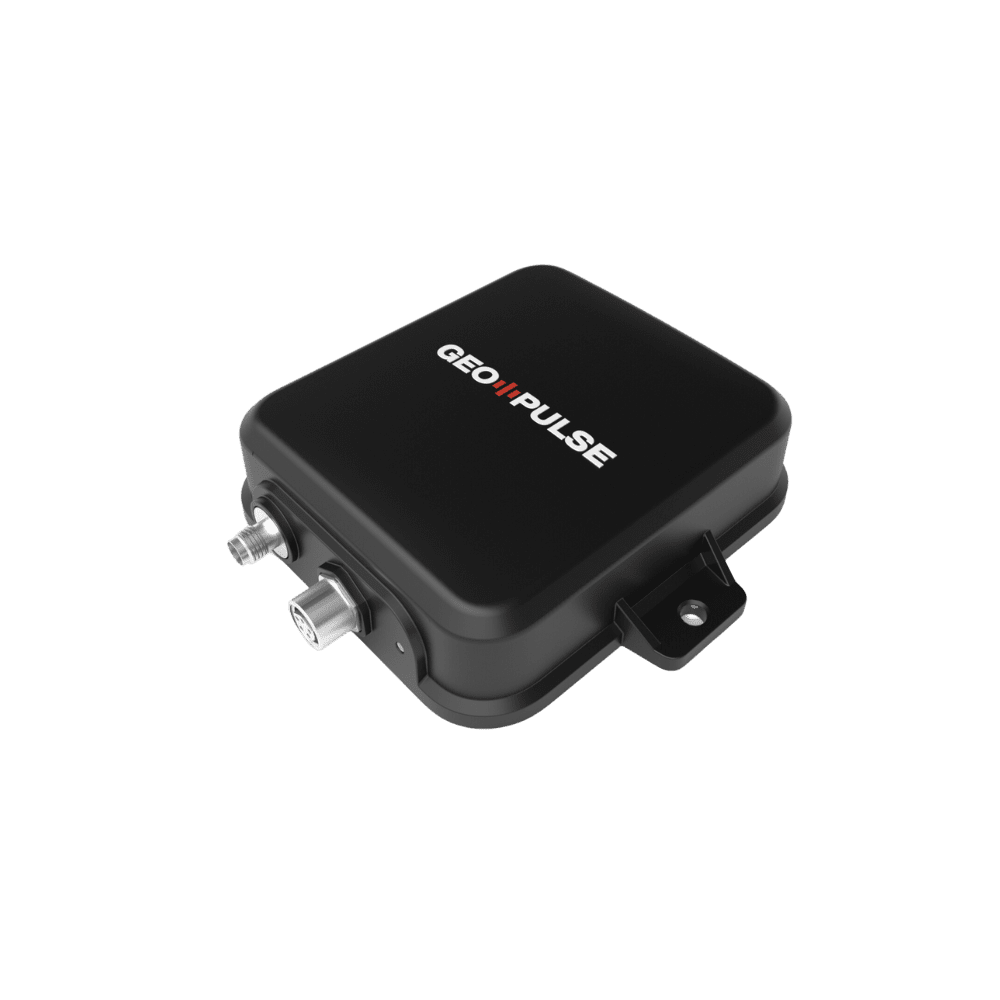

GEODNET GEO‑PULSE

Add lane‑level navigation to any vehicle: GEO‑PULSE pairs with the GEO‑PULSE app (iOS/Android) to deliver up to 0.1 m RTK accuracy via the GEODNET network. An integrated IMU enables dead‑reckoning performance when satellites are briefly obstructed, and a re‑radiation booster function can improve GNSS reception for third‑party devices inside the cabin. Ultra‑light (<200 g) and ultra‑efficient (<0.9 W) for simple USB power.

Key benefits

Lane‑level precision: <0.1 m (RTK fixed) with GEODNET corrections
Fast setup: power via USB, then pair over Bluetooth (or Wi‑Fi) in minutes
Keeps working under bridges & canopies: sensor fusion + IMU dead‑reckoning
Earn rewards: complete in‑app Token Quests to earn GEOD tokens (no ROI implied)

What’s in the box

GEO‑PULSE unit (integrated GNSS antenna)
Dashboard mount
USB‑C power cable

Setup at a glance

Mount on the dashboard (or roof) with clear sky view; connect 5 V USB power.
Install the GEO‑PULSE app (iOS/Android), power on the device, and pair via Bluetooth.
Enable GEODNET RTK in the app and follow prompts; optionally enable Quest rewards.
Start navigating (and quests) — enjoy lane‑level positioning in your favorite apps.

Power & notes

Typical draw <0.9 W at 5 V USB. GNSS operation is receive‑only; the in‑cabin booster re‑radiates GNSS to help third‑party devices and does not increase RTK precision. Use the booster feature as described in the manufacturer documentation.

Additional information

Weight	1 kg
Dimensions	20 × 20 × 10 cm

Attribute	Value
Model	GEODNET GEO‑PULSE
Positioning	RTK + Dead‑Reckoning (integrated IMU)
Horizontal accuracy	Autonomous ~1 m; RTK <0.1 m + 1 ppm (when RTK‑fixed)
GNSS constellations	GPS/QZSS L1 C/A, L5; GLONASS L1; Galileo E1, E5a; BeiDou B1I, B2a
Update rate	Navigation 1/10 Hz (configurable); Raw GNSS 1 Hz; IMU up to 100 Hz
Connectivity	Bluetooth & Wi‑Fi; companion GEO‑PULSE app (iOS/Android)
Time to first fix	Full cold start 26 s (without GEODNET), ~5 s (with GEODNET); warm 16 s; hot 1 s
1 PPS	20 ns
Sensitivity	Acquisition −145 dBm; Tracking −165 dBm; Reacquisition −157 dBm
Power	<0.9 W typical @ 5 V USB
Power supply	USB‑A source (vehicle charger etc.); USB‑C cable included
Weight	<200 g
Mounting	Dashboard mount included; roof mounting supported
Booster function	GNSS re‑radiation port to assist in‑cabin devices (does not enhance RTK precision)
In the box	GEO‑PULSE unit; dashboard mount; USB‑C power cable

How accurate is GEO‑PULSE?

When RTK‑fixed with GEODNET corrections, GEO‑PULSE delivers lane‑level positioning with ~10 cm horizontal accuracy. In autonomous mode, accuracy is about 1 m.

Does it work with iOS and Android?

Yes. Use the GEO‑PULSE app on iOS or Android to pair (Bluetooth/Wi‑Fi), enable GEODNET RTK, and manage quests.

What is the “booster” feature and does it improve RTK?

The booster re‑radiates GNSS signals inside the cabin to help devices like dashcams maintain GPS. It does not improve RTK precision.

How do I start earning rewards?

Open the app’s Quest section, connect your wallet as prompted, and complete driving tasks (“Token Quests”). Rewards are paid in GEOD (and may include IoTeX promotions). No income is guaranteed.

What do I need to power it?

A standard 5 V USB power source (e.g., vehicle USB/charger) is sufficient. Typical draw is under 0.9 W.

What’s included with GEO‑PULSE?

The package includes the GEO‑PULSE unit (integrated GNSS antenna), a dashboard mount, and a USB‑C power cable.
