MGW310 + Nubila Marco Bundle

Description

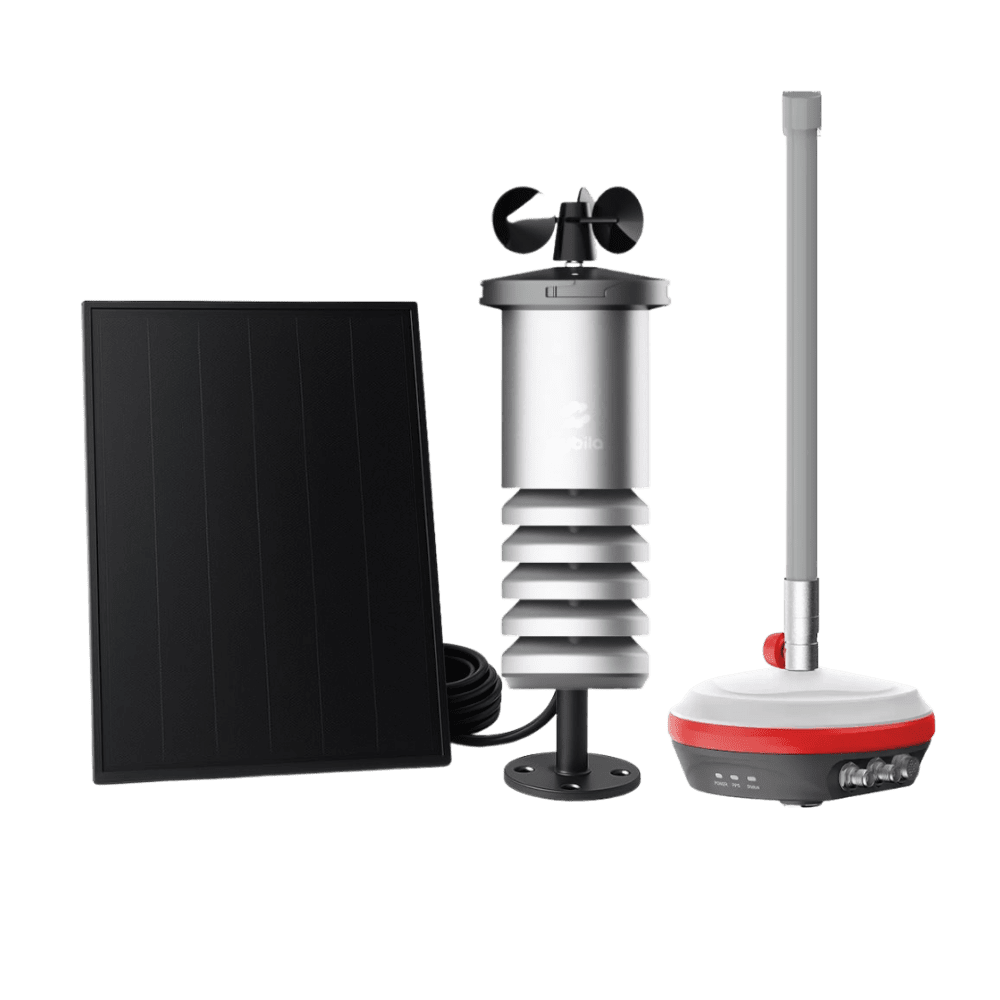

MGW310 + Nubila Marco Bundle

Operate two high‑value networks and add real weather data with one bundle. MGW310 contributes 1090 MHz ADS‑B to Wingbits and triple‑band GNSS (L1/L2/L5) observations to GEODNET, while Nubila Marco provides temperature, humidity, pressure, wind & UV measurements via Wi‑Fi/BLE. Quick setup (MGW310 local WebUI, Marco mobile app), outdoor‑ready design (MGW310 IP67‑level; Marco IP56), and low power (<5.5 W for MGW310; Marco solar + 4000 mAh).

Key benefits

One bundle, multi‑network: Wingbits ADS‑B + GEODNET GNSS (MGW310), plus Nubila weather (Marco)
Fast onboarding: MGW310 device AP + local setup page; Marco pairs via app (BLE) and uploads via 2.4 GHz Wi‑Fi
Outdoor & efficient: MGW310 IP67‑level, typical draw <5.5 W; Marco IP56 with solar + 4000 mAh battery
Flexible connectivity: MGW310 Ethernet/Wi‑Fi (optional LTE via mPCIe); Marco Wi‑Fi 2.4 GHz + BLE 5.0

What’s in the box

MGW310 station; >+3 dBi fiberglass ADS‑B antenna (top‑mount); 10 m combined power+Ethernet cable; AC adapter with international plug faceplates
Nubila Marco weather station; solar panel (with stand); USB‑C charging cable; basic mounting hardware; quick start guide

Setup at a glance

Reserve your Wingbits location (one station per res‑6 hex); after purchase, use the code to extend the reservation.
Mount MGW310 outdoors with clear horizon; attach the ADS‑B antenna; connect power & Ethernet (or prepare Wi‑Fi/LTE).
Join the MGW310 AP and open http://192.168.10.1 to enter network settings; onboard to Wingbits and (optionally) GEODNET.
Charge Marco via USB‑C once, pair in the app over BLE, add Wi‑Fi, and mount with sun exposure for the solar panel.

Power & compliance

MGW310 typical draw <5.5 W at 12 V; ADS‑B is receive‑only; GNSS is passive. Marco runs solar‑powered with a 4000 mAh battery (>3 days typical) and uploads via 2.4 GHz Wi‑Fi. Incentives/rewards depend on each network’s rules; no earnings are guaranteed.

Attribute	Value
Bundle	HYFIX MGW310 + Nubila Marco
Use case	Wingbits ADS‑B flight tracking + GEODNET GNSS observations (MGW310) & 5‑in‑1 weather data to Nubila (Marco)

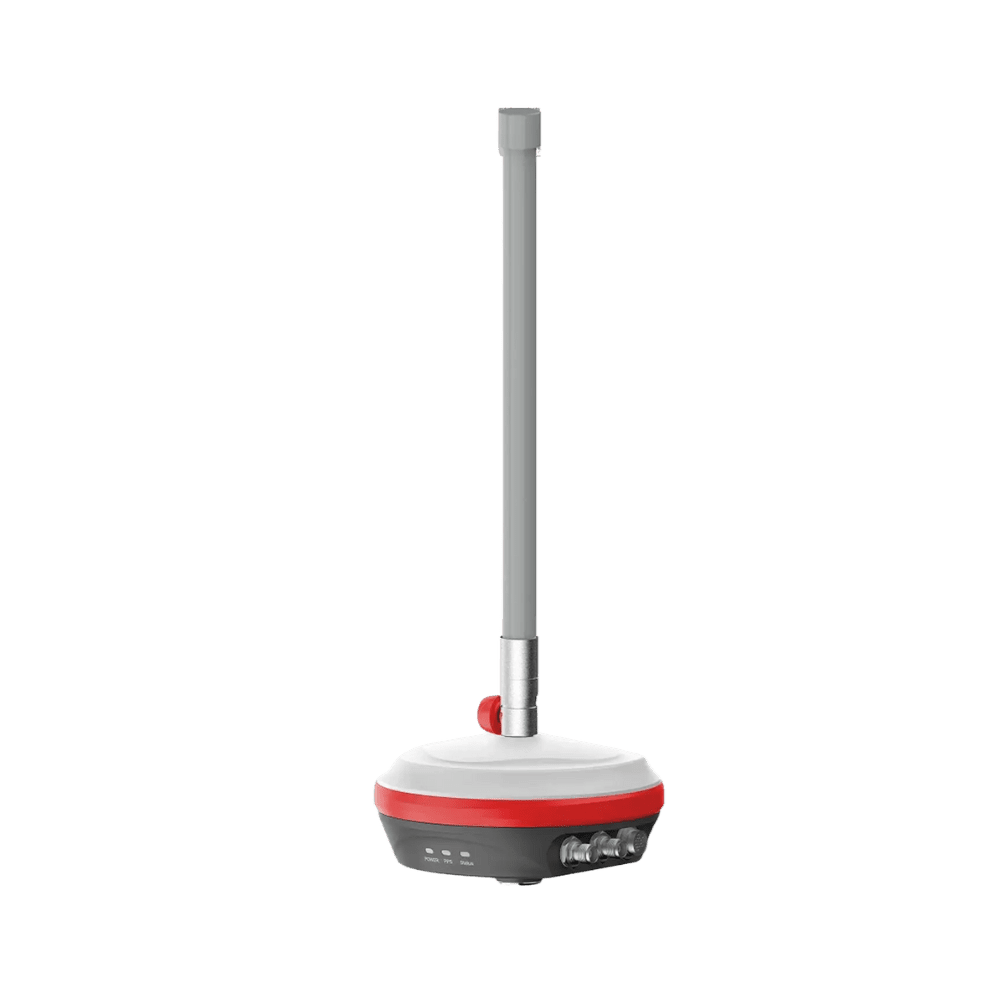

MGW310 — Model	Wingbits MGW310 (HYFIX MGW310)
ADS‑B radio	1090 MHz via on‑board SDR; >+3 dBi fiberglass antenna included
GNSS	Triple‑band L1/L2/L5 multi‑constellation (GPS, Galileo, BeiDou, GLONASS); PoL via AES‑128 secure element
Connectivity	Ethernet 10/100 (RJ45); Wi‑Fi 2.4 GHz 802.11 b/g/n & 5 GHz 802.11ac; Bluetooth 4.2; optional 4G/LTE (mini‑PCIe)
Management	Local WebUI (`192.168.10.1`); OTA firmware updates
Antenna connectors	TNC female (top); TNC female AUX1/AUX2 (side)
Power	12 V DC, <5.5 W (typical)
Enclosure	Outdoor, IP67‑level
Size & weight	≈94 × 160 × 160 mm; ~925 g (~1025 g with antenna)
In the box	MGW310 device; >+3 dBi ADS‑B antenna; 10 m power+Ethernet cable; AC adapter (120–240 VAC, intl. plugs)

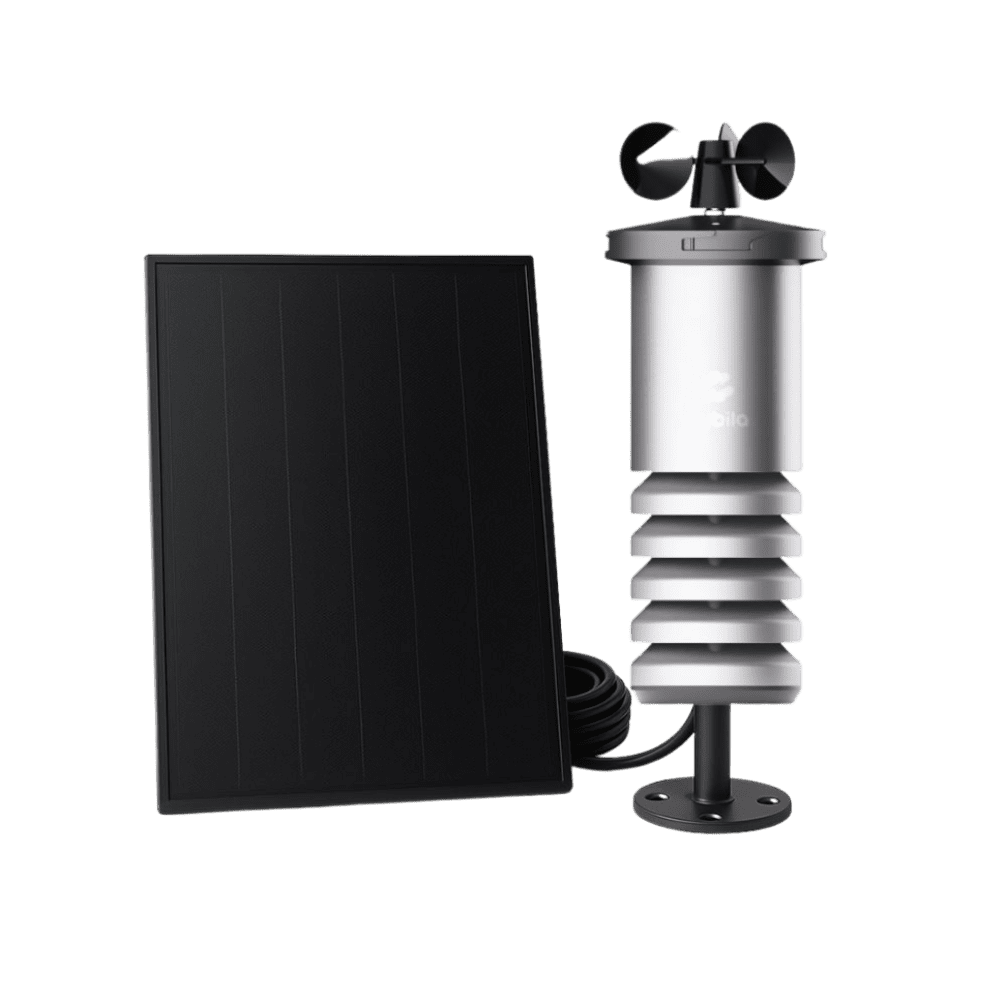

Nubila Marco — Measurements	Temperature, humidity, air pressure, wind speed, UV index
Ranges & accuracy	Temp −40…80 °C (±0.5 °C); RH 0–100 % (±4 % 20–80 %); Pressure 300–1100 hPa (±1 hPa @25 °C); Wind 0–40 m/s (±10 % or 1 m/s); UV 0–11 (±1 level)
Connectivity	Bluetooth BLE 5.0; Wi‑Fi 2.4 GHz
Data storage & intervals	On‑device buffer up to 25 days; default Wi‑Fi interval 5 min; BLE update ~1 s
Power	Solar‑powered; built‑in 4000 mAh Li‑ion (>3 days typical); USB‑C (5 V DC)
Ingress protection	IP56
Operating temperature	−40 °C to 80 °C
In the box	Marco unit; solar panel (with stand); USB‑C cable; mounting hardware; quick start guide

Which networks does this bundle support?

MGW310 works with Wingbits (ADS‑B 1090 MHz) and GEODNET (triple‑band GNSS). Nubila Marco contributes 5‑in‑1 weather data to the Nubila network.

Do I need to reserve a Wingbits location hex?

Yes. Wingbits allows one station per res‑6 hex. Reserve your hex first and, after purchase, use the provided code to extend your reservation before installation.

How do I configure the MGW310?

Mount the unit, attach the ADS‑B antenna, power on, connect to the device AP, and open http://192.168.10.1 to enter Wi‑Fi/Ethernet (optional LTE via mini‑PCIe). Then onboard to Wingbits and (optionally) GEODNET.

How do I set up Nubila Marco?

Charge once via USB‑C, pair in the Nubila app over BLE, enter Wi‑Fi (2.4 GHz), and mount outdoors with sun exposure for the solar panel. Data uploads at a default 5‑minute interval.

Is MGW310 transmit‑only or receive‑only?

MGW310 receives ADS‑B and passively observes GNSS; data is forwarded over the Internet to the respective network.

Power & weather rating?

MGW310: 12 V DC, typical <5.5 W; IP67‑level enclosure. Marco: solar + 4000 mAh battery (>3 days typical), IP56.

What’s included in the bundle?

See “What’s in the box” above: MGW310 device + antenna + 10 m power/Ethernet cable + AC adapter; Marco unit + solar panel (with stand) + USB‑C cable + mounting hardware + quick start guide.
