Geodnet + Wingbits MGW310 Miner

Description

Protect your location and secure your hex with these steps:

Important!

Confirm your position: After purchasing your Wingbits hardware, you should definitely specify the location for your installation. This ensures that the area you have chosen is reserved exclusively for you and that other users cannot become active there.
Receive your individual code: After purchase, you will be redirected to a checkout page. There, you will see a special code linked to your order displayed at the top in a large green box.
Reserve your spot: Go to the Wingbits interactive map, enter your code, and secure your desired location. Once reserved, no one else can install there, guaranteeing your spot on the network.

Wingbits MGW310 — ADS‑B + Triple‑Band GNSS Station

Deploy one weather‑ready device to contribute 1090 MHz ADS‑B flight data to Wingbits and triple‑band GNSS observations to GEODNET. MGW310 sets up fast (local WebUI, OTA firmware), supports Ethernet/Wi‑Fi with optional 4G LTE via mini‑PCIe, and draws under 5.5 W—ideal for reliable 24/7 uptime on rooftops or masts.

Key benefits

Dual‑purpose: stream ADS‑B via on‑board SDR and operate a triple‑band GNSS base
Flexible connectivity: Ethernet, Wi‑Fi; optional 4G/LTE (mPCIe expansion)
Fast onboarding: device AP + local setup page; firmware updates over‑the‑air
Low power <5.5 W; international AC power supply included

What’s in the box

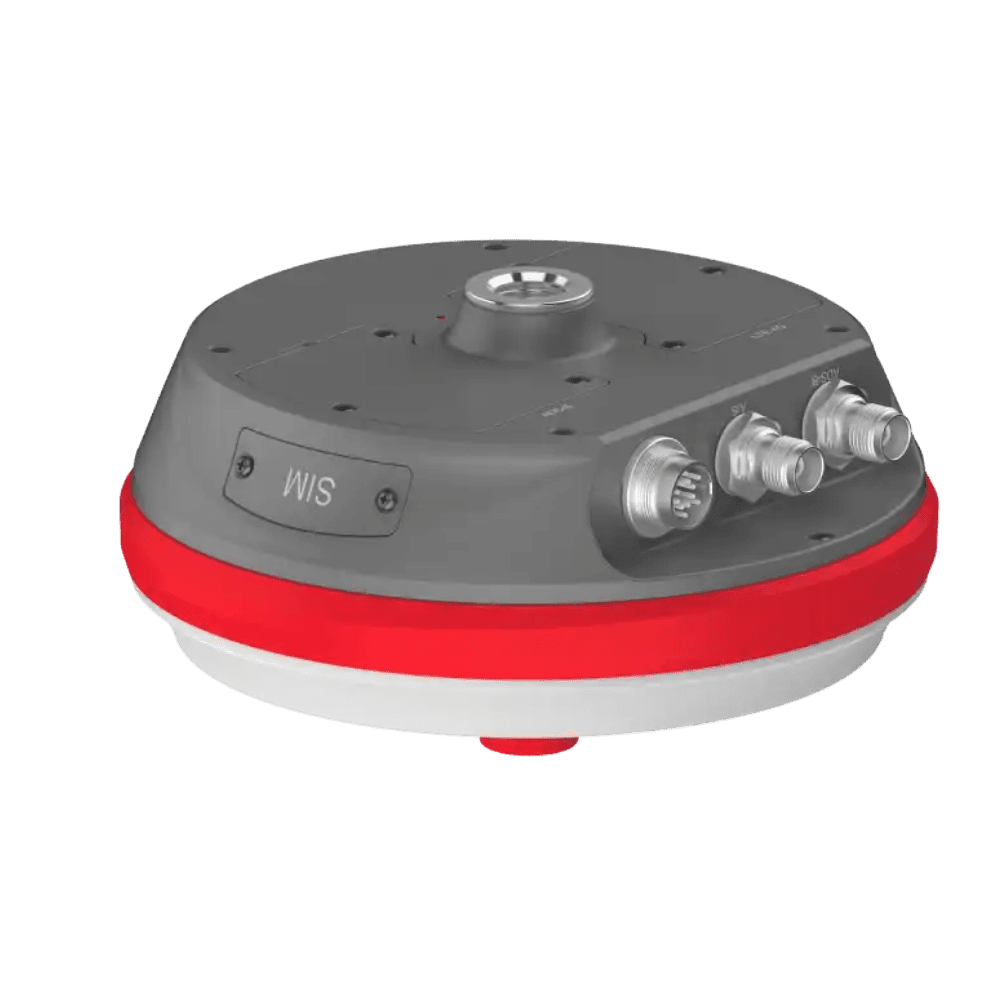

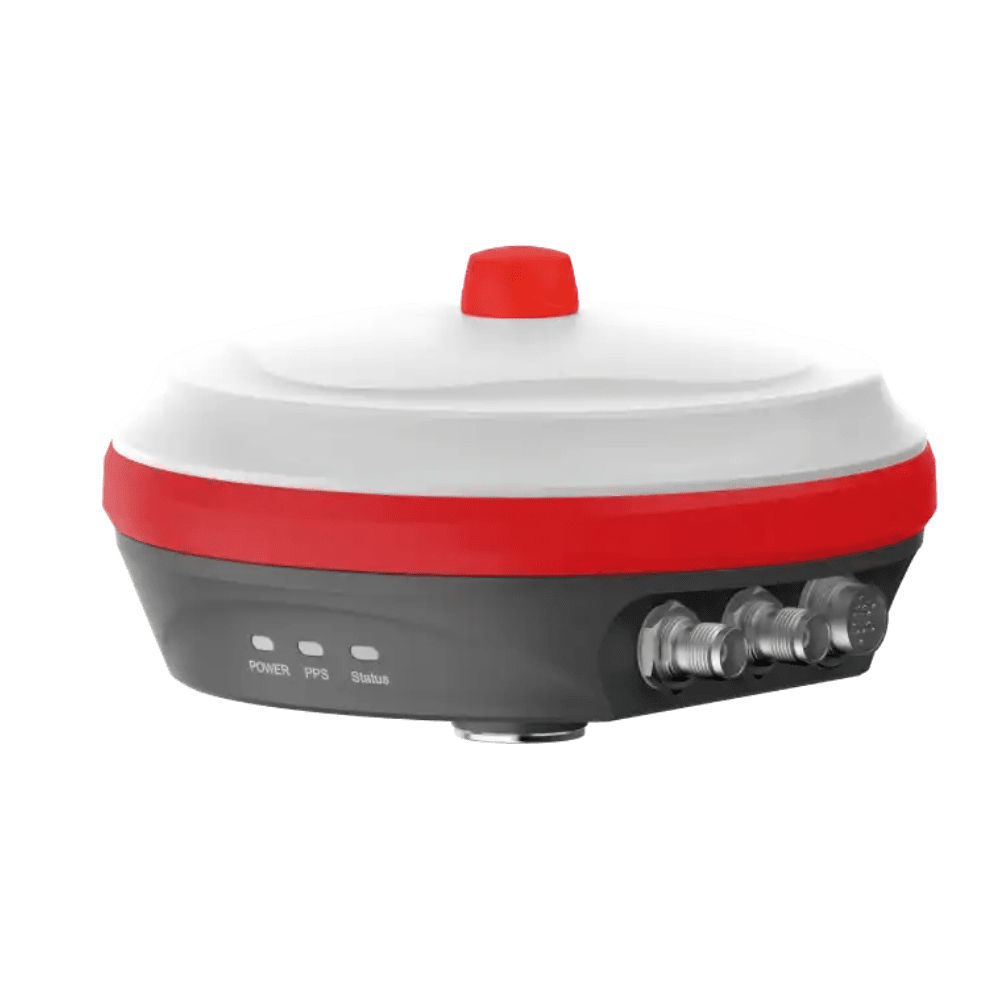

MGW310 station (weather‑proof enclosure)

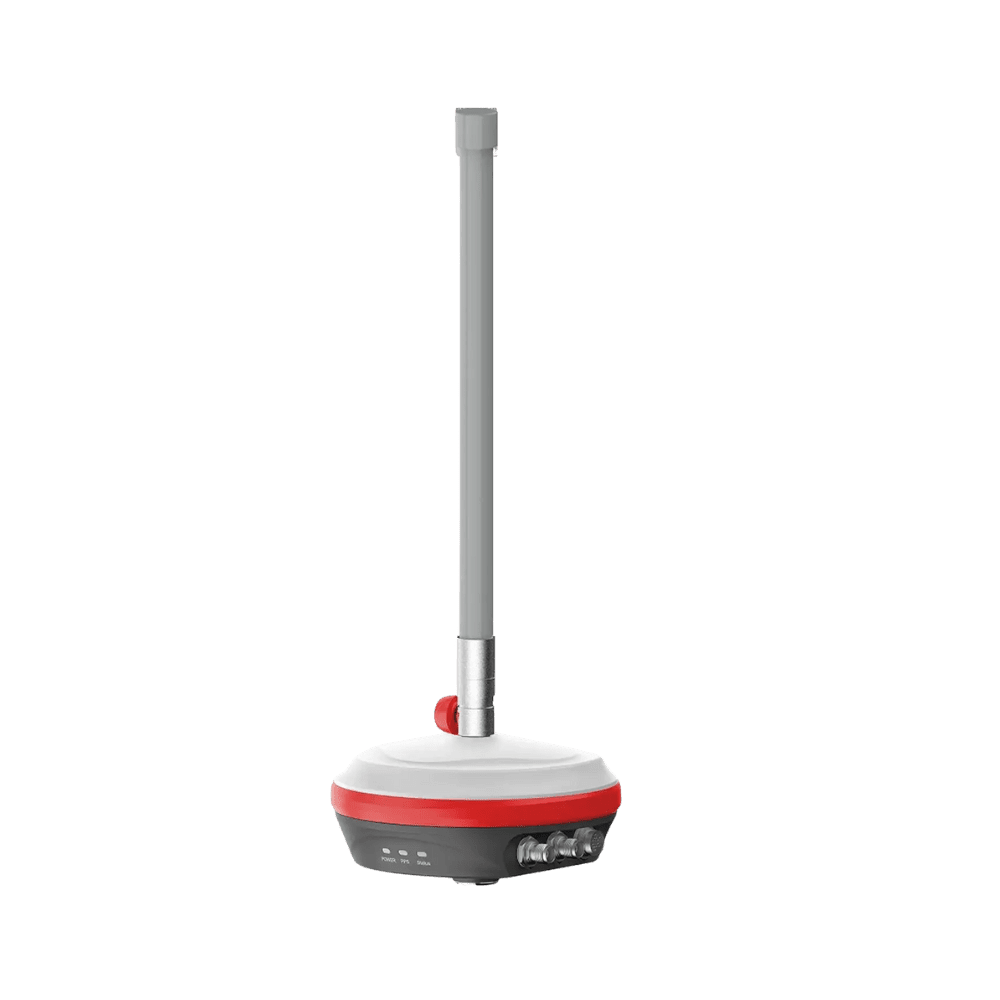

>+3 dBi fiberglass ADS‑B antenna (top‑mount)
10 m combined power + Ethernet cable
AC adapter (120–240 VAC, international plug faceplate)

Setup at a glance

Reserve your Wingbits location (one device per res‑6 hex). After checkout, use your unique code to extend the reservation.
Mount outdoors with clear sky/horizon. Attach the ADS‑B antenna; connect power and Ethernet (or prepare Wi‑Fi/LTE).
Connect to the device AP (MGW310_XXXXXX) and open http://192.168.10.1 to enter Wi‑Fi and required settings.
Onboard to Wingbits and (optionally) GEODNET to start contributing data and earning per network rules.

Power & compliance

Typical draw is under 5.5 W at 12 V. ADS‑B is receive‑only; GNSS is passive (no RF emissions). Follow manufacturer mounting and handling guidance to preserve waterproofing and RF performance.

Additional information

Weight	3 kg
Dimensions	40 × 30 × 10 cm

Attribute	Value
Model	Wingbits MGW310 (HYFIX MGW310)
ADS‑B radio	1090 MHz via on‑board Software‑Defined Radio; >+3 dBi fiberglass antenna included; top port for custom antenna
GNSS	Triple‑band (L1/L2/L5) multi‑constellation: GPS, Galileo, BeiDou, GLONASS
Proof‑of‑Location	On‑board AES‑128 secure element
Connectivity	Ethernet 10/100 (RJ45); Wi‑Fi 2.4 GHz 802.11 b/g/n & 5 GHz 802.11ac; Bluetooth 4.2; optional 4G/LTE via mini‑PCIe
Management	Local WebUI (`192.168.10.1`); OTA firmware updates
Operating system	Linux
Power	12 V DC, <5.5 W (typical)
Power supply	120–240 VAC with selectable international plug faceplate
Size & weight	Ø 160 mm × H 94 mm; ~950 g
Enclosure	Outdoor, weather‑proof design
In the box	MGW310 device; >+3 dBi ADS‑B antenna; 10 m power+Ethernet cable; AC adapter

Which networks does MGW310 work with?

MGW310 supports dual operation: Wingbits for ADS‑B flight tracking and GEODNET for triple‑band GNSS observations. You can onboard to either or both per your deployment plan.

Do I need to reserve a location hex?

Yes. Wingbits allows one device per res‑6 hex. Secure your hex first and, after you purchase, use the unique code shown at checkout to extend your reservation before installation.

How do I connect and configure the device?

After powering on, connect to the device AP (MGW310_XXXXXX) and open http://192.168.10.1 to enter Wi‑Fi credentials and any required settings. Ethernet and optional LTE (mPCIe) are also supported.

Is the station transmit‑only or receive‑only?

The MGW310 receives ADS‑B at 1090 MHz and GNSS signals passively. GNSS operation has no RF emissions; data is forwarded over the Internet to the respective network.

What’s included with MGW310?

The package includes the MGW310 device, a >+3 dBi fiberglass ADS‑B antenna (top‑mount), a 10 m combined power+Ethernet cable, and an AC adapter with international plug faceplate.

Any key handling or mounting tips?

Do not power the unit without the antenna attached; hand‑tighten collars only. Mount outdoors with clear line‑of‑sight. If using LTE, install the mPCIe module per the manufacturer’s guide to maintain waterproofing.
